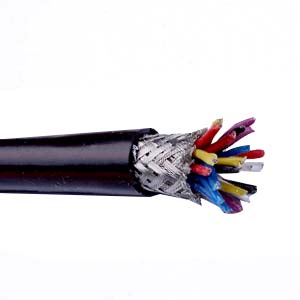

TRVV高柔性拖链电缆
名称：TRVV高柔性拖链电缆
| 横截面积(mm2) | 根数/线径(mm) | 绝缘厚度(mm) | 芯数 | 20˚C时导体直流电阻（Ω/km） | 包装长度(m) |
| 4 | 56*0.30 | 1.0 | 2-19 | 5.09 | 100 |
| 6 | 84*0.30 | 1.0 | 2-10 | 3.39 | 100 |
| 10 | 84*0.40 | 1.2 | 1.82 | 100 | |
| 16 | 126*0.40 | 1.2 | 2-5 | 1.22 | 100 |
| 25 | 196*0.40 | 1.4 | 0.795 | 100 | |
| 35 | 276*0.40 | 1.4 | 0.565 | 100 | |
| 50 | 396*0.40 | 1.6 | 0.393 | 100 | |
| 70 | 360*0.50 | 1.6 | 0.227 | 100 | |
| 95 | 475*0.50 | 1.8 | 0.210 | 100 | |
| 120 | 608*0.50 | 1.8 | 0.164 | 100 | |
| 150 | 756*0.50 | 2.0 | 0.132 | 100 | |
| 185 | 925*0.50 | 2.2 | 0.108 | 100 | |
| 240 | 1221*0.50 | 2.4 | 0.0817 | 100 |
